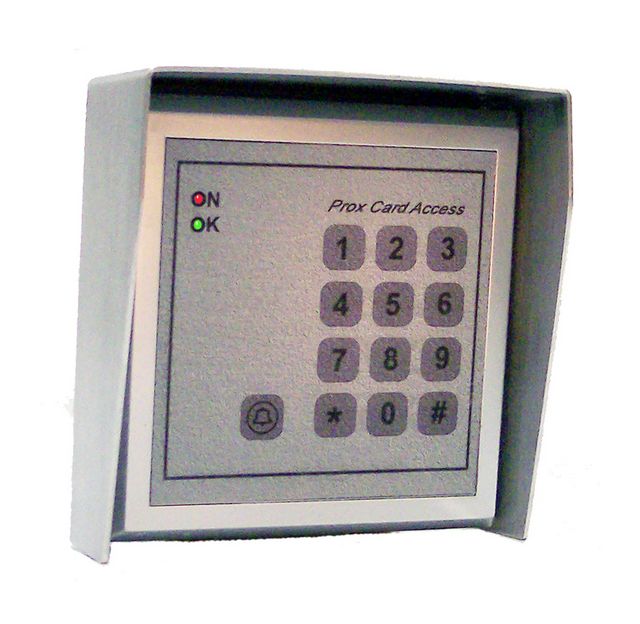

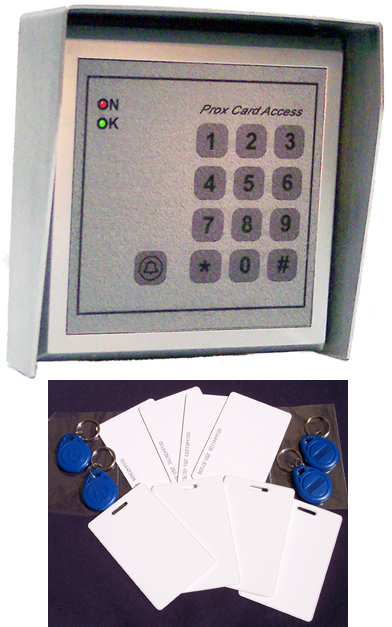

This Stand Alone Reader does not require a PC and is simple to program. (see Quick Start .pdf)
It wires directly to an automatic garage door, door strike, magnetic lock, or gate opening mechanism.
Individual entrance codes can be Prox Card, Keypad Pin or both for up to 10,000 users.
The Reader has an All Metal Shroud that protects the unit from Harsh Environment and Vandals.
-- Absolutely no plastic is used as support and will provide a much more permanent installation --
Some applications include; Gated Entrance, Garage Door, Lobby Entrance, IT Room Protection.
No matter what application you choose you will not find a more simple or better value product.
This unit mounts directly to a standard single switch plate electrical box. Thus installation is very simple
This unit requires 12vdc. You can also purchase our 12vdc Wall Box Power Supply. This power supply mounts behind the Reader and can be mounted anywhere AC power is available. ( see WB-12v .pdf )
Features:
· Please review Quick Start .PDF below

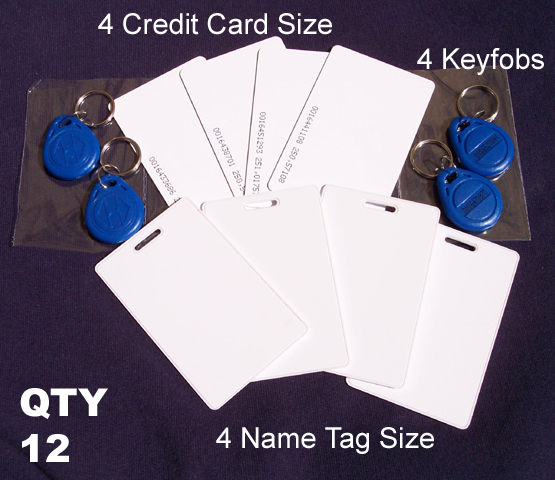

· User capacity : 10,000. You can register and deregister various RFI
Cards/passwords ( i.e. if you need to deactivate someone's access)
· Operating Temperature : 32°F - 140°F
· Operating Humidity: 10%-90%
· Card reading proximity: 5 to 15cm in most instances
- Voltage: DC 12V
· Size: 4.7"L x 4.8"W x 1.7"H
